Use RecordsView Control

RecordsView control is a grid-like UI element useful for displaying records of data. It is usually used to display results of the Query select() function.

To initialize RecordsView control, RecordsView.source property must be set. Value can be a records object, an array of records, or an array of attributes.

Initialize With Records

The main job for RecordsView control is to display one or more records collections.

Simple RecordsView with only one records tab

var contracts = await Contract.where(...).selectAsync();

recView.source = contracts;

Simple RecordsView with two records tabs

var contracts = await Contract.where(...).selectAsync();
var contractors = await Contractor.where(...).selectAsync();

recView.source = [contracts, contractors];

RecordsView With Sub-Records Callback

In the case you want your RecordsView to have additional level that is populated when parent row is expanded, you should implement RecordsView.subrecords event handler.

Sub-Records Callback Example 1

this.customersView.subrecords( async (r, idx)=> {
    return await Contacts.where(Contacts.partyB, WhereOperator.Equal, r.id).selectAsync();
  });

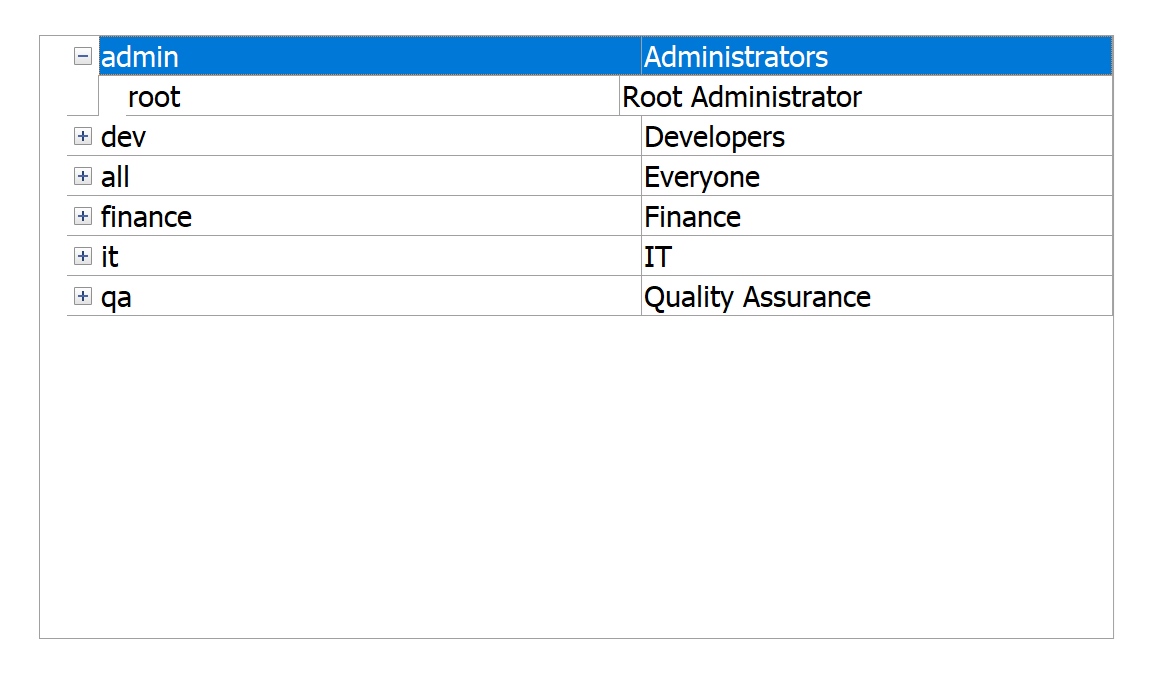

Sub-Records Callback Example 2How it looks like

var groups = Grantee.where(Grantee.type, WhereOperator.Equal, 2/*group*/).select();
// this is equivalent to Management.groups

this.recordsView = new RecordsView(this);
this.recordsView.align = Align.Client;
this.recordsView.options.gridLines = true;
this.recordsView.options.header = false;
this.recordsView.fields = [
    Grantee.name, Grantee.label,   // 1st level
    [Grantee.name, Grantee.label]  // 2nd level
  ];
this.recordsView.subrecords((group) => group.members);
this.recordsView.source = groups;

Initialize With Attributes

We can also use attributes to initialize RecordsView. Each control's row is one attributes object or array of attribute.

recView.source = [
  [atrA, atrB, [subAtr1, subAtr2, subAtr3]]   // 1st row with 3 details
  [atrC, atrD, [subAtr4, subAtr5]]            // 1nd row with 2 details
];

Fields

Sometimes we want to choose which field from the records collection we want to show in RecordsView.

// simple
recView.fields = [Contract.party, Contract.amount];

// with details
recView.fields = [Contract.party, Contract.amount, [Contractor.name]];

// with Attribute objects
recView.fields = [
  new Attribute({
      name: Contract.amount,                 // could use a simple text too
      type: AttributeValueType.String,       // Contract.amount is numeric, but we need string
      value: (r)=> r.amount + ' $',          // use getter to format display
      setValue: (r, v) => {                  // use setter to process value
         Record.amount = do some calc with v;
      },
      foreground: (r)=> {                    // draw RED all > 1000
         if (r.amount >= 1000) return 'red';
      },
      font: { style: { bold: true, underline: true } }
  }),
  new Attribute({
      name: Contract.party,
  }),
];

Override Captions

Defines captions (headers) for the columns in the records view.

// simple
recView.captions = ['Contract Party', 'Amount'];
// with detail
recView.captions = ['Contract Party', 'Amount', ['SubLevelCol1']];

Sorting

Defines the sorting of the records displayed in the RecordsView.

// simple
recView.sorting = [new Sorting(Contract.party, SortingOrder.Asc)];
// equivalent ('Asc' is default)
recView.sorting = [Contract.party]
// equivalent (using dict)
recView.sorting = [{field: Contract.party, sorting: SortingOrder.Asc}];

Grouping

Specifies how the records should be grouped in the RecordsView.

Example 1

this.recordView.grouping = Contract.date;

Example 2

this.recordView.grouping = [Contract.partyA, Contract.date];

Example 3

// if recordView has multiple tabs
this.recordView.grouping = [
    [Contract.partyA, Contract.date], // 1st tab grouping
    [Customer.name]                 // 2nd tab grouping
  ];

Example 4

// if recordView has details with details
this.recordView.grouping = [
    Contract.partyA,        // 1st level grouping
    [Note.date]         // detail level grouping
  ];

Summary

Defines sums for the columns in the RecordsView. See Summary.

Example of Footer Summary

this.recordView.summary = [new Summary(Contract.amount, SummaryKind.Sum, SummaryPosition.Footer, '$,0.00')];

Filter

Specifies filtering criteria to limit the records shown in the RecordsView. Please note that this filter is applied on local data. See Filter.

Filter contracts with title containing 'NodeActa'

this.recordView.filter = new Filter(Contract.name, WhereOperator.Like, '%NodeActa%');
// to clear filter do
this.recordView.filter = undefined;
